Heat Exchangers

Heat Exchangers

“Bluewill Exports- Where experience and expertise go hand-in-hand to empower growth to create infinite possibilities in heavy engineering.” We design and manufacture most reliable and wide range of Heat Exchangers with a vision to provide Heat Transfer Solution to everyone and everywhere. Today, we are one of India’s leading manufacturer of Heat Exchangers supplying not just within the country, but across the globe.

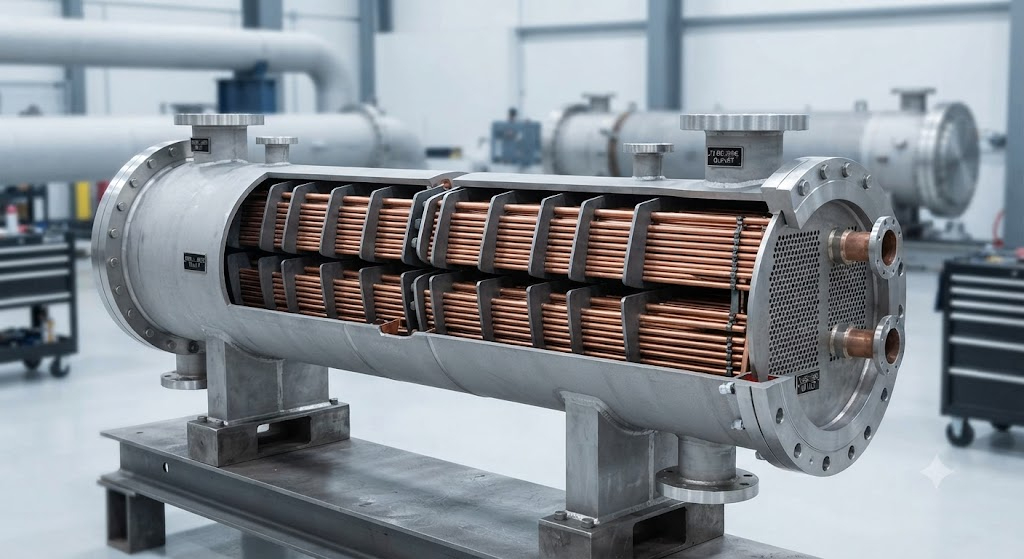

Shell & Tube Heat Exchangers

We manufacture Shell & Tube type Heat Exchangers in a wide variety of sizes & materials. Vikrant Heat Exchangers Pvt. Ltd. is a complete facility to design (Thermal and Mechanical) and manufactures complete range of Shell and Tube Heat Exchangers for cooling, condensing and heating application.
A Shell & Tube Heat Exchanger Consists of a Shell with Traditional plain tubes or enhanced surface tubes for high thermal performance.
Our manufacturing facility is well supported by in house design facility equipped with latest software’s & design codes and welding development department to establish manufacturing process for any new material.

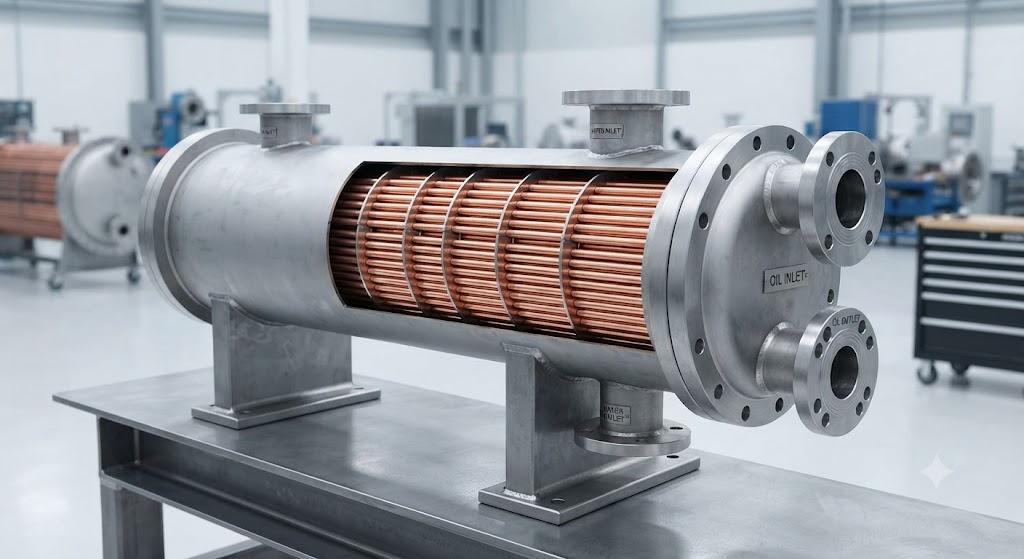

Oil Cooler

We are proud to introduce ourselves as one of the leading Hydraulic Oil Cooler Manufacturers from India. Hydraulic Oil Coolers are used in variety of industries for desired applications. From standard to highly specialised, these units come in a full range of sizes and materials.
These units are usually specified as floating head (TEMA type “W”) with O-Ring and weep hole for early leak detection. The units can be designed to ASME Section VIII, Div 1, API 612, 618,618, & 660, TEMA Class R, C & B as well as customer supplied specifications. Heat Exchanger-Oil Cooler can be obtained from us at the most competitive price in the industry.

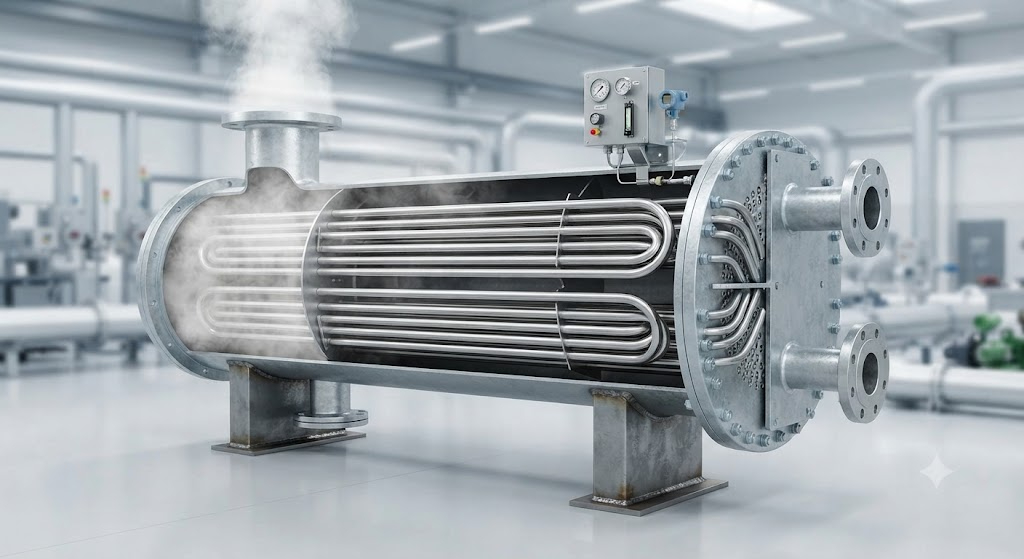

U-Tube Heat Exchangers

U Tube Bundle Heat Exchangers can duplicate any existing bundle to include dimensions, materials and performance.
A heat-exchanger system consisting of a bundle of U tubes hairpin tubes surrounded by a shell. One fluid flows through the tubes, and the other fluid flows through the shell, around the tubes.
A U-Tube Heat Exchanger is the most common heat exchanger used in various industries with high pressure and high temperature.

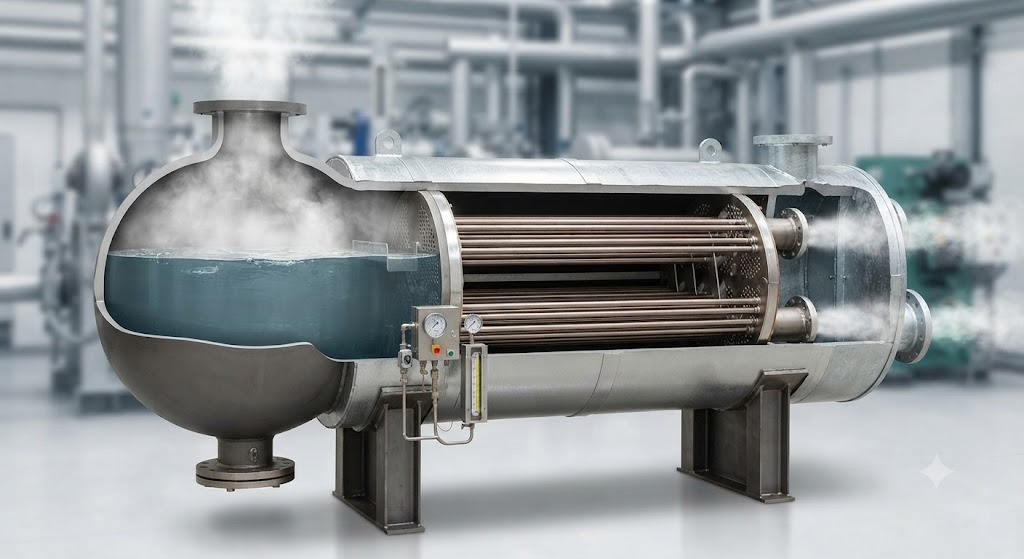

Kettle Type Heat Exchanger

Kettle Heat Exchangers are very simple and reliable. They may require pumping of the column bottoms liquid into the kettle, or there may be sufficient liquid head to deliver the liquid into the Heat Exchanger. In this Heat Exchanger type, steam flows through the tube bundle and exits as condensate. The liquid from the bottom of the tower, commonly called the bottoms, flows through the shell side. There is a retaining wall or overflow weir separating the tube bundle from the reboiler section where the residual reboiled liquid (called the bottoms product) is withdrawn, so that the tube bundle is kept covered with liquid. Kettle reboilers are reliable in that they can handle high vaporization of up to 80 percent and are easy to maintain. The liquid from the bottom of the tower flows through the tube bundle and exits as condensate. A restraining device (baffle) controls the liquid level over the bundle.

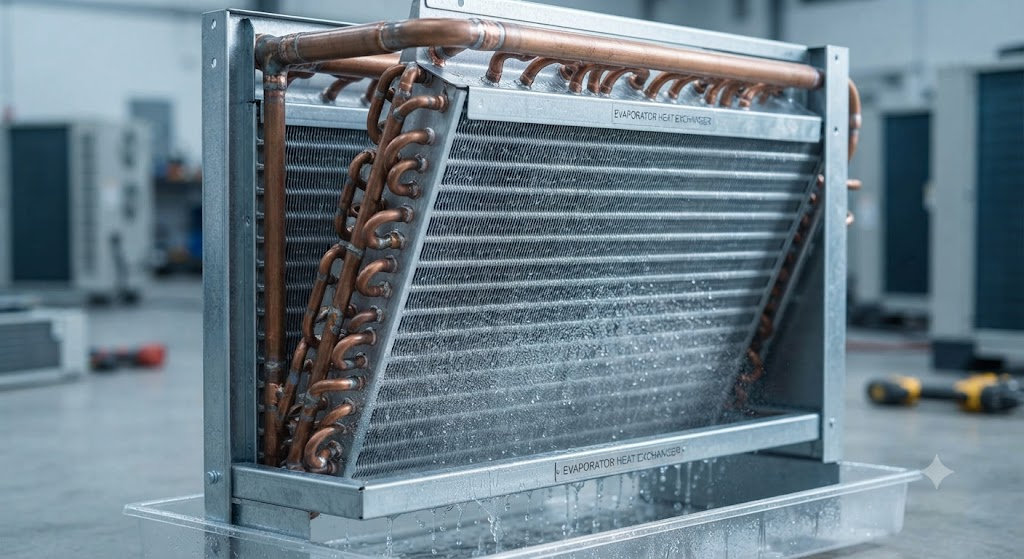

Evaporators

Evaporator are specially designed for heat-sensitive materials. that’s the reason due to which evaporators are highly used in chemical industries, petrochemicals, fertilizers, polymer industries, and the industry producing low viscous products. it is highly preferred where organic compound is with water and release large amounts of foul while processing. it acted as a unique type of heat exchanger. heating media is placed on the shell side. its circulation loop is well fitted with the high flow circulation pump.

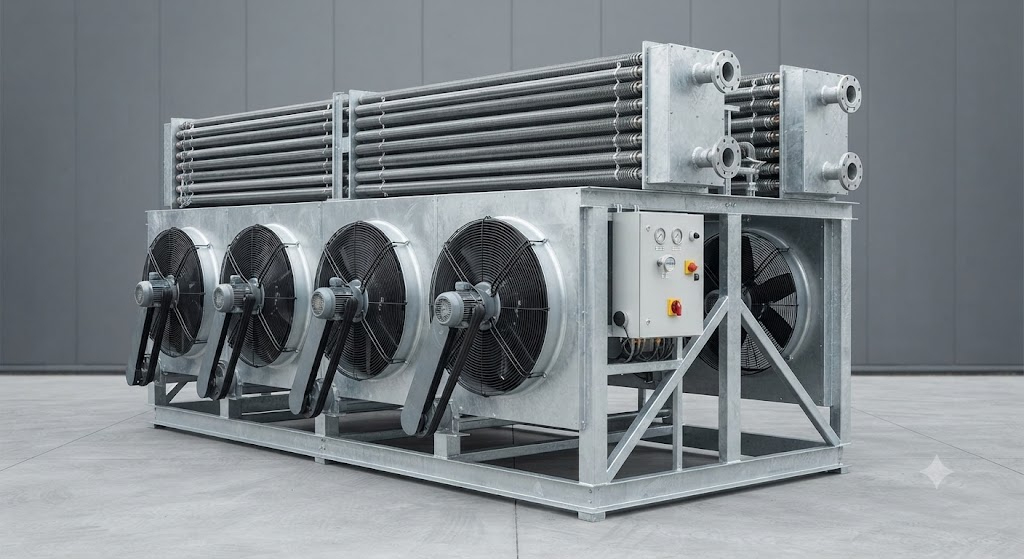

Air Cooled Heat Exchangers

These Air Cooled Heat Exchangers are used in oil, gas, petrochemical, refinery, power and condensation plants. All type of fluids in process industries are cooled in Air Fin Coolers with the use of atmospheric air, as the cooling media which resulting in economy in running costs. They are used for high pressure, high temperature applications in process industries with metallurgy suitable for highly corrosive fluid medias. We are specialised in to design and manufacturing of AIR COOLED HEAT EXCHANGER, using in-house manufactured finned tubes.
